Victron

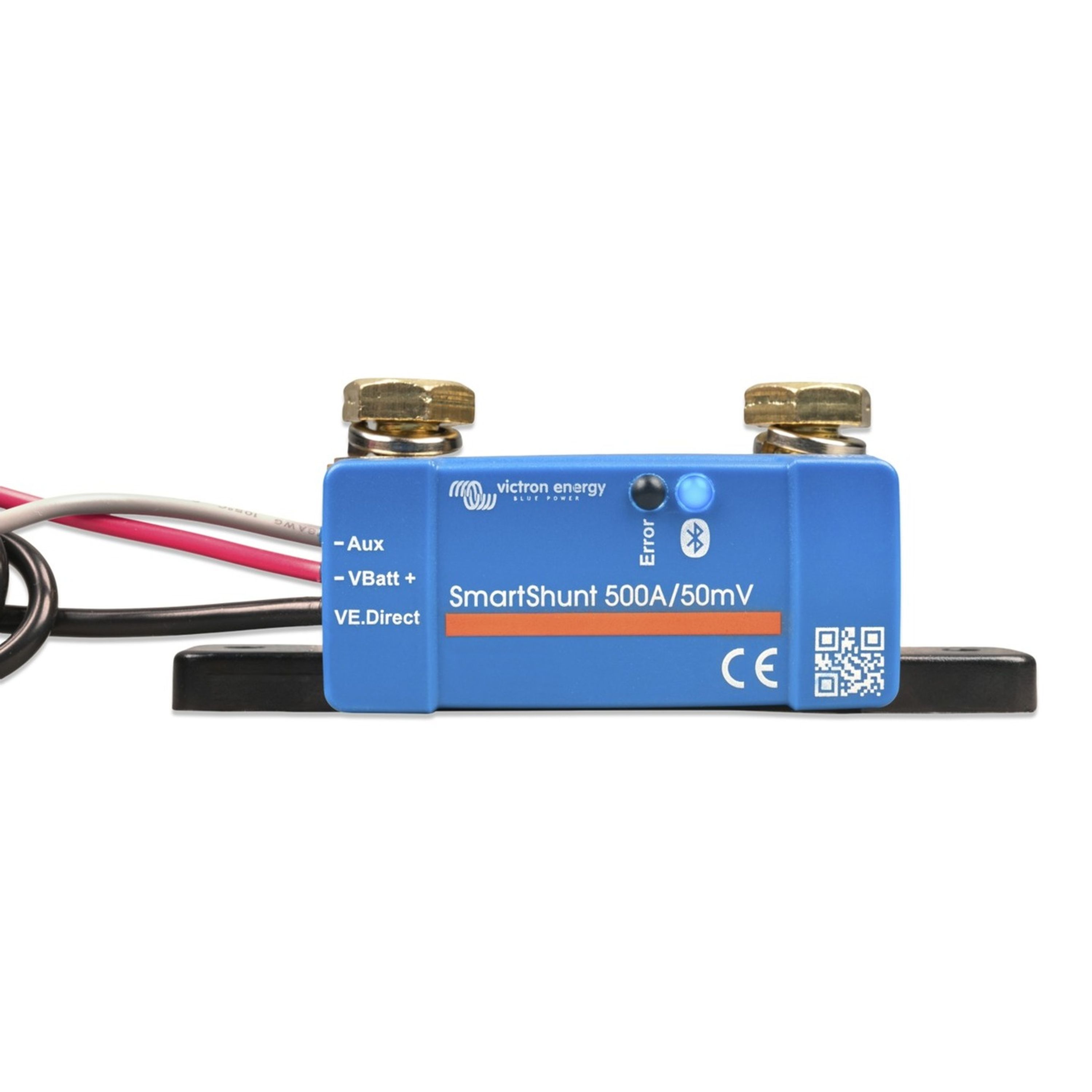

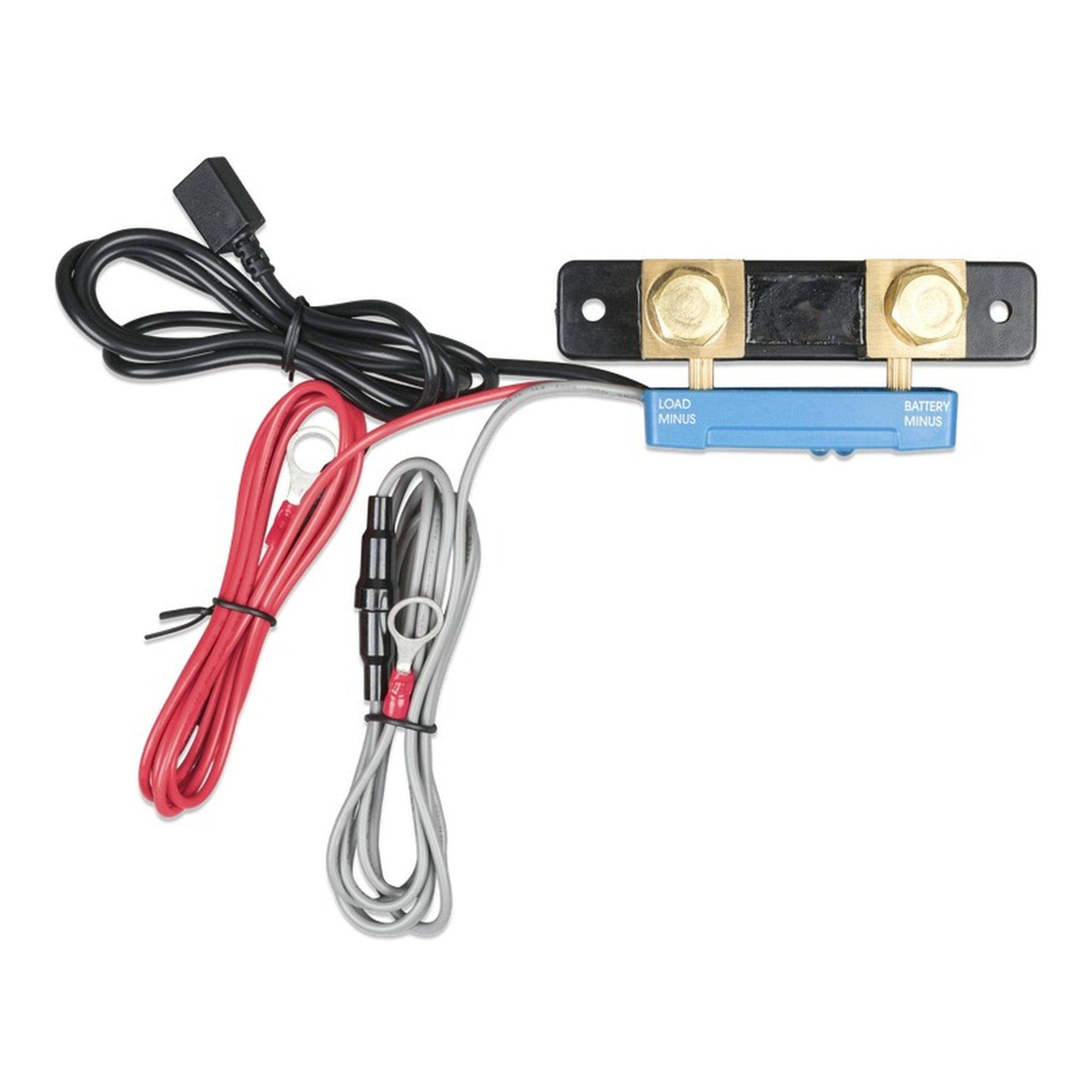

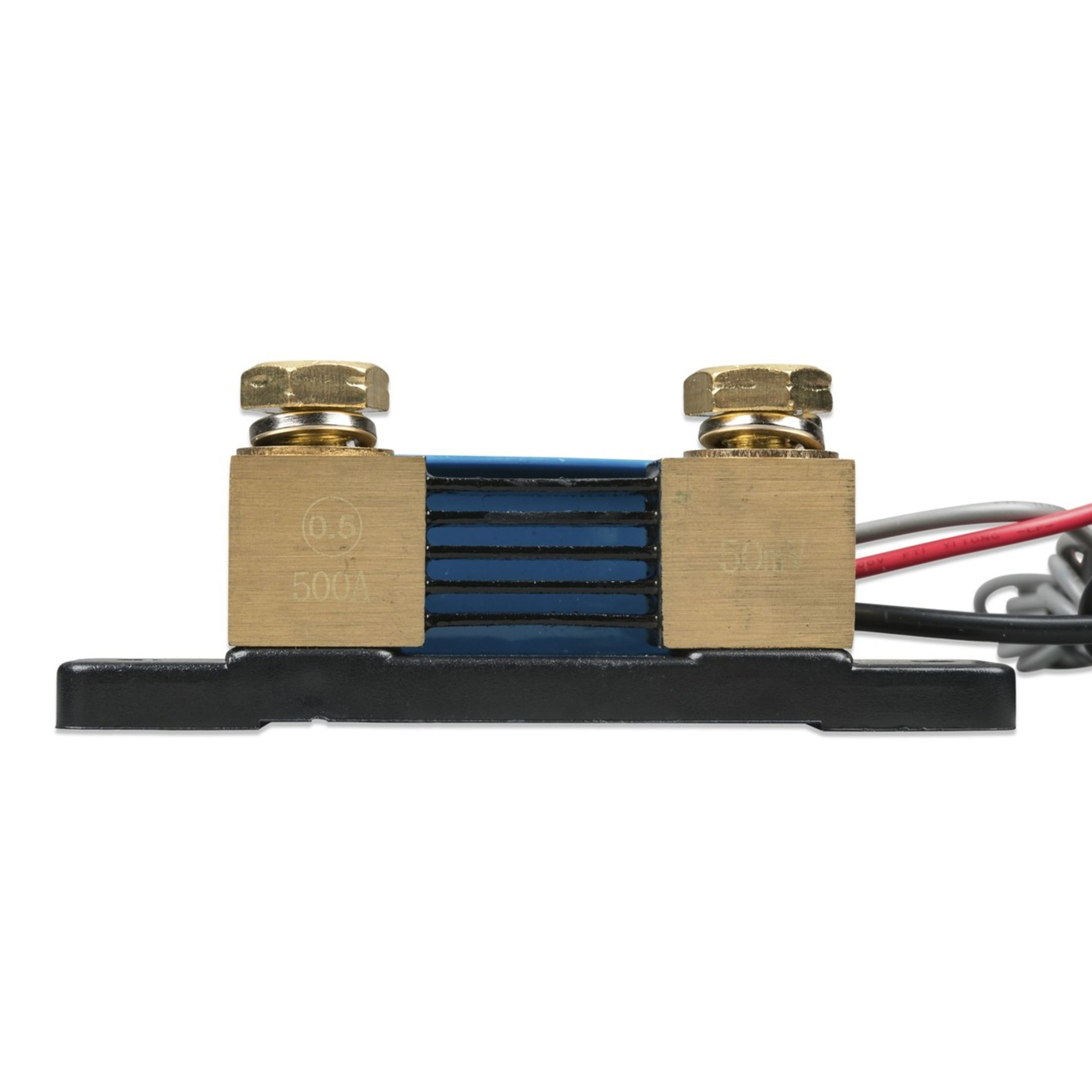

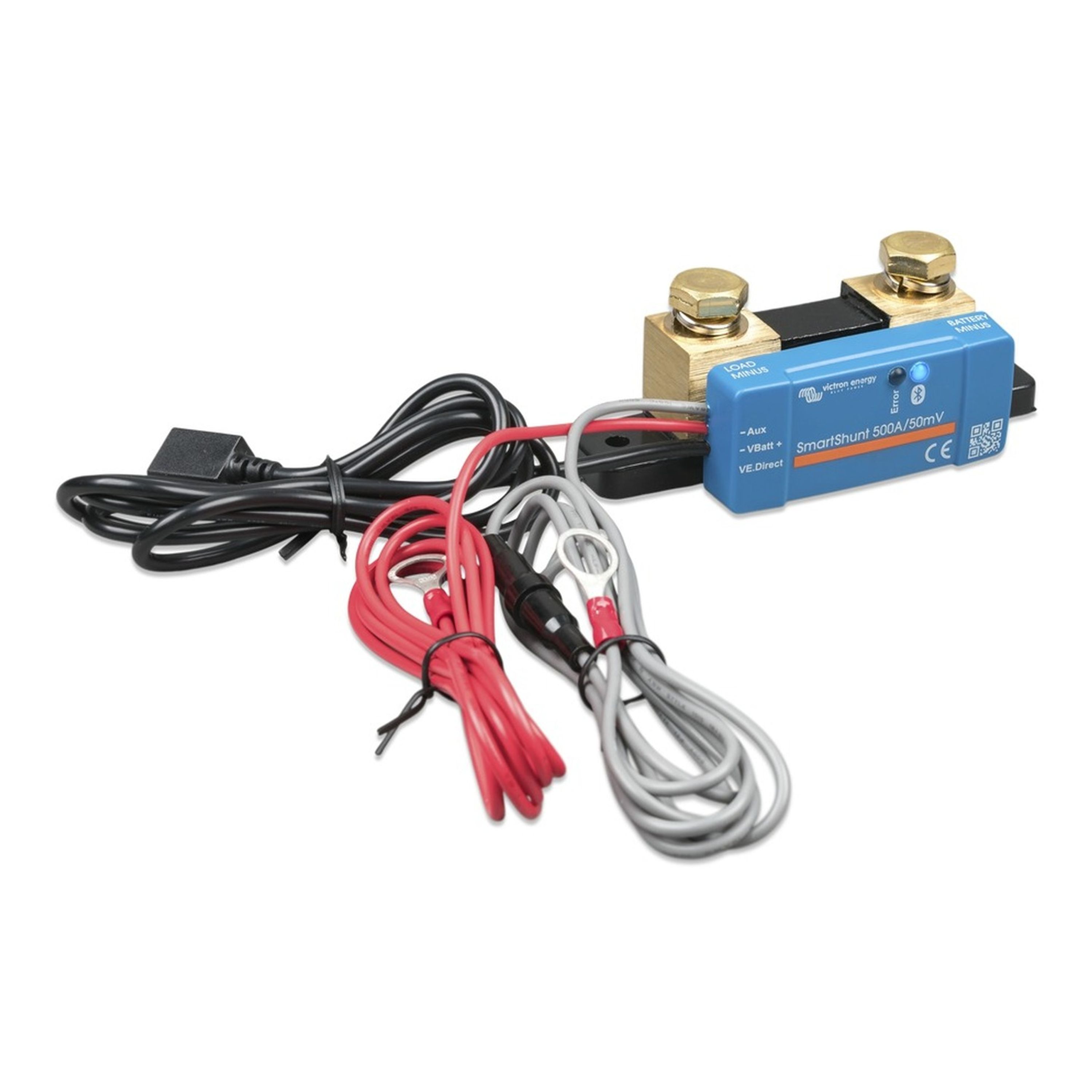

Victron Smart Shunt 500A/50mV IP65 with Bluetooth Connectivity
- Cat No:
- MS6196
- MPN:
- SHU065150050
Sold as:1 Each
In Stock$239.00
Description
The SmartShunt is an all in one battery monitor, minus the display. Your phone does that job instead. It connects via Bluetooth to the VictronConnect app so you can check state of charge, time to go, and historical data straight from your phone or tablet.
It can also be read by a GX device over VE.Direct, so it drops straight into a larger Victron setup.
If you want proper battery monitoring without the extra wiring and clutter of a screen based monitor, the SmartShunt is the simpler alternative to a BMV.
Key features
- Built in Bluetooth, no separate display needed
- Handles up to 500A through the shunt
- VE.Direct port for GX device integration
- IP65 rated, holds up in damp or dusty spots like engine bays and battery compartments
- Compact footprint at 120mm (W) x 46mm (H) x 54mm (D), fits in tight battery boxes
- Extra connection point for monitoring a second battery, midpoint monitoring, or a temperature sensor
Specifications
- IP Rating
- IP65
- Width
- 120.0mm
- Height
- 46.0mm
- Depth
- 54.0mm
- Diameter
- 1.0mm
- Weight
- 1.0g
- Dimension details
- M10 connection bolts
- Packaged Dimensions
- 15.5cm(Length) x 9.1cm(Width) x 7.2cm(Height)
