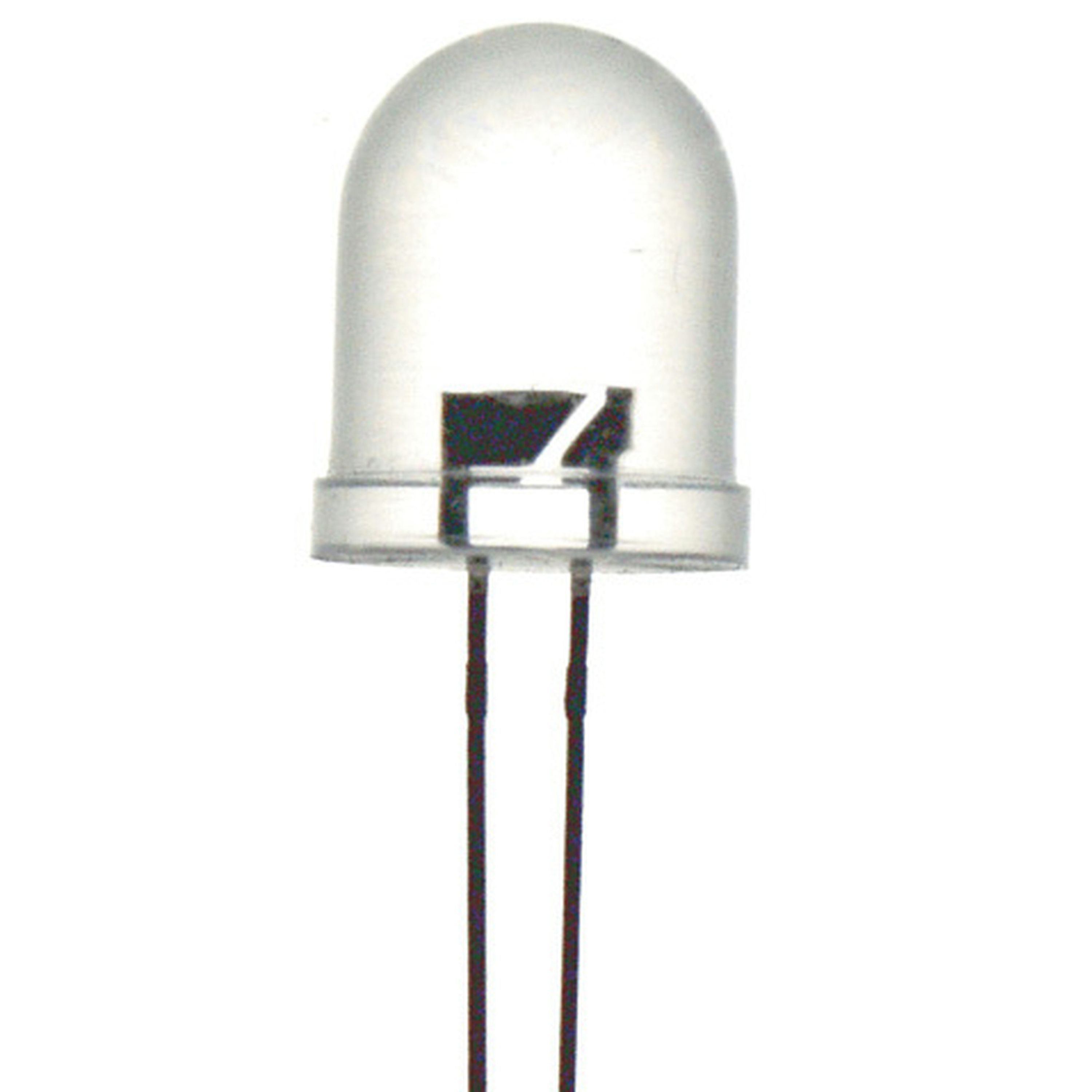

White 10mm LED 5000mcd Round Clear
- Cat No:
- ZD0220
In Stock
$1.95
Description
White 10mm LED 5000mcd Round Clear
Specifications
- LED Type
- 10mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- White
- Lens Type
- waterclear
- Light Wavelength
- 0.25nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 5000.0mcd
- Viewing Angle
- 30.0°
- Resistor for 5VDC
- 91.0Ω
- Resistor for 9VDC
- 300.0Ω
- Resistor for 12VDC
- 430.0Ω
- Diameter
- 10.0mm
- Packaged Dimensions
- 4.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
