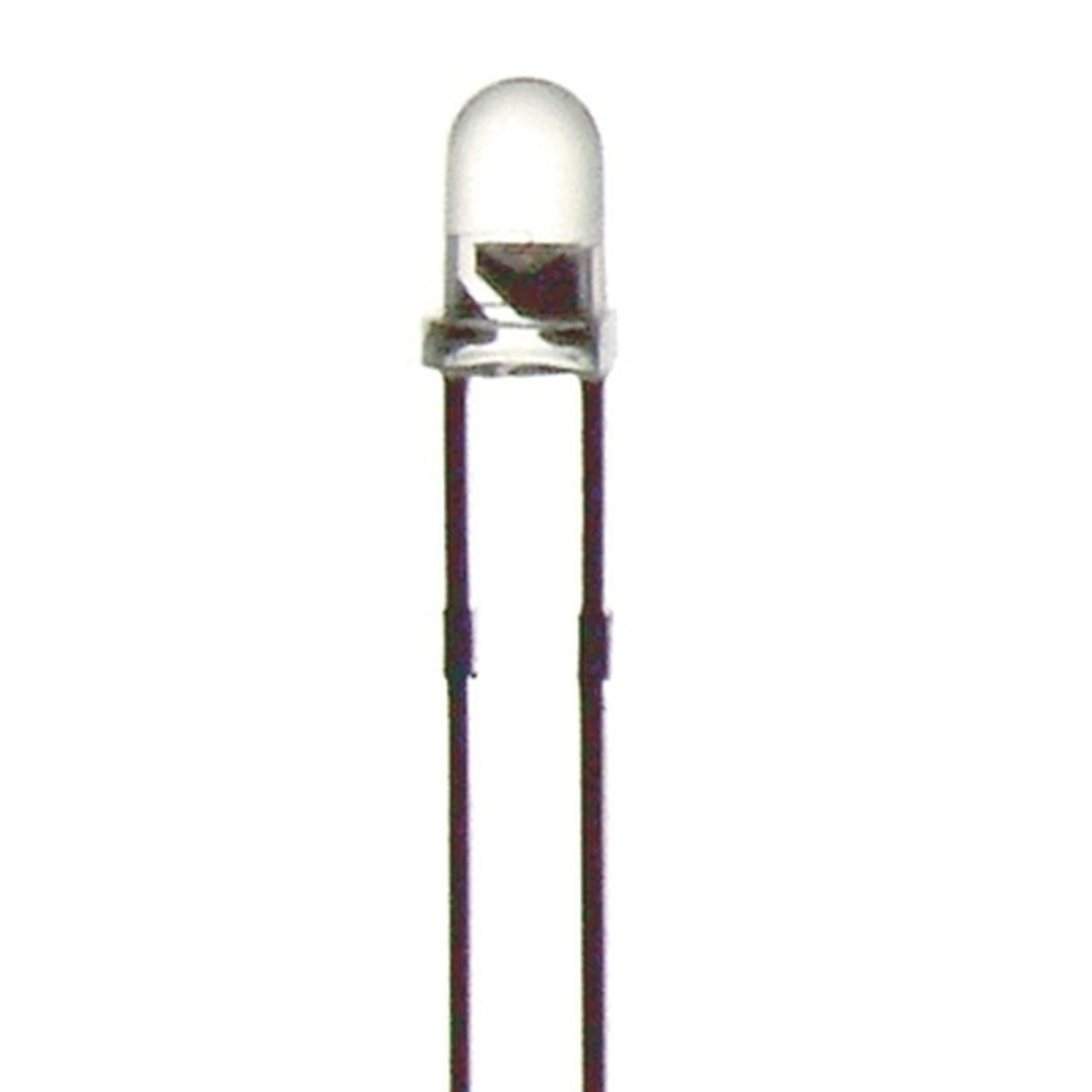

White 5mm LED 33000mcd Round Clear
- Cat No:
- ZD0196
In Stock
$2.75
Description
White LED 5mm Clear 33000MCD
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- White
- Lens Type
- waterclear
- Viewing Angle
- 20.0°
- Intensity
- 33000.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 30.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 100.0mA
- Resistor for 5VDC
- 56.0Ω
- Resistor for 9VDC
- 180.0Ω
- Resistor for 12VDC
- 270.0Ω
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 2.0 count
- Diameter
- 5.0mm
- Packaged Dimensions
- 0.5cm(Length) x 0.5cm(Width) x 3.5cm(Height)
