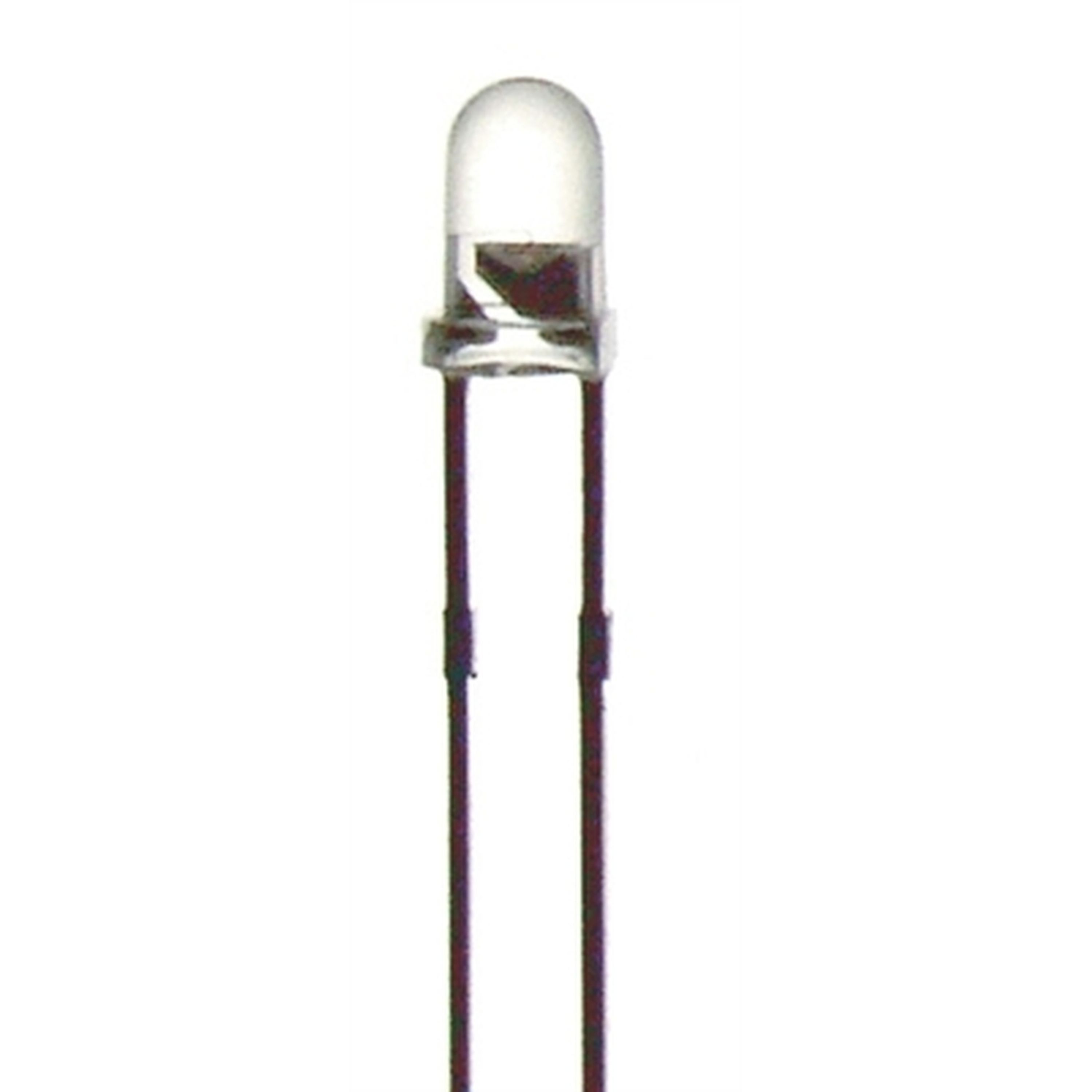

Yellow 5mm LED 4000mcd Round Clear
- Cat No:
- ZD0164
In Stock
$1.15
Description
Yellow 5mm LED 4000mCd Round Clear
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Yellow
- Lens Type
- waterclear
- Light Wavelength
- 588nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 50mA
- Intensity
- 5200mcd
- Viewing Angle
- 15°
- Resistor for 5VDC
- 150Ω
- Resistor for 9VDC
- 360Ω
- Resistor for 12VDC
- 510Ω
- Diameter
- 5mm
- Packaged Dimensions
- 3.5 x 0.6 x 0.6 cm
