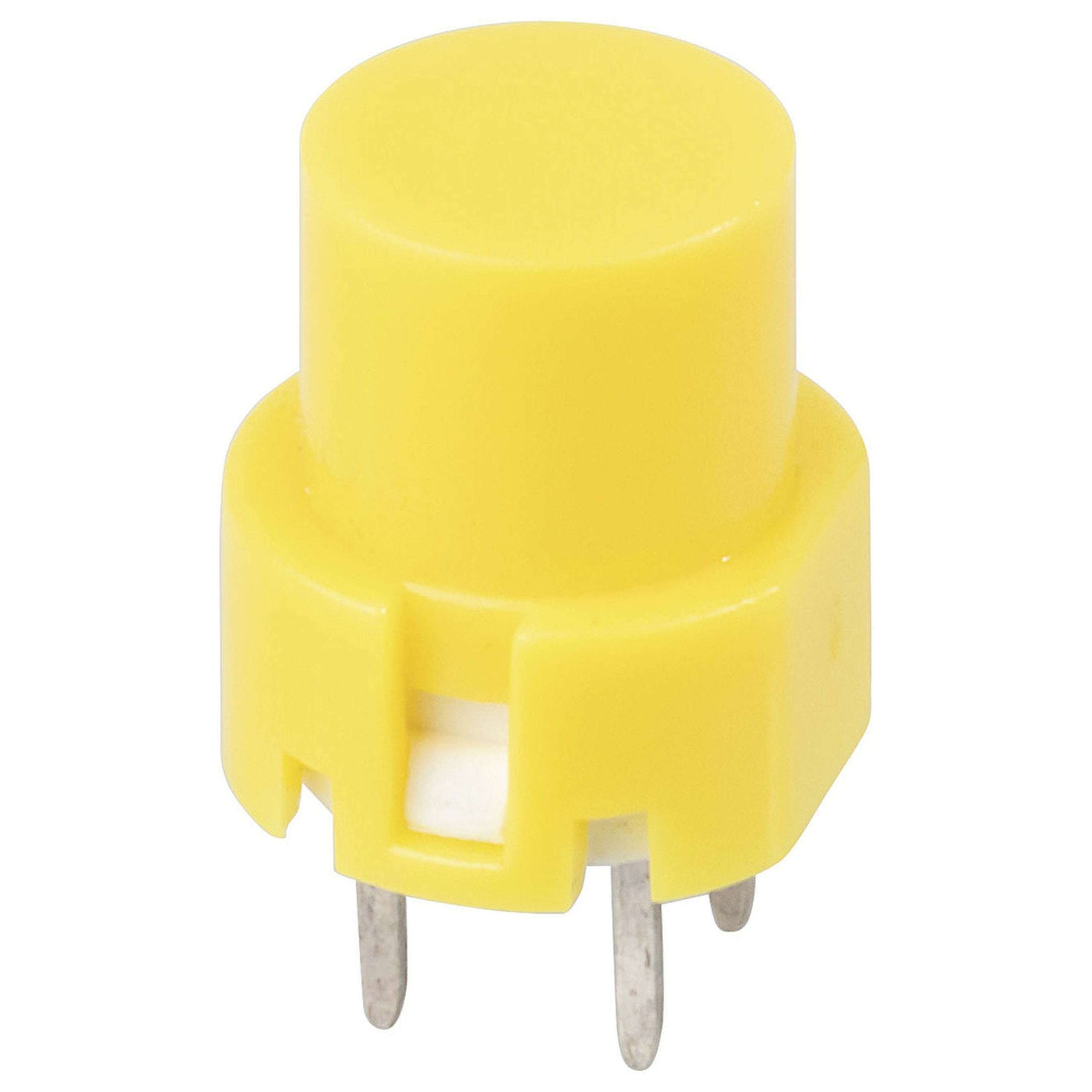

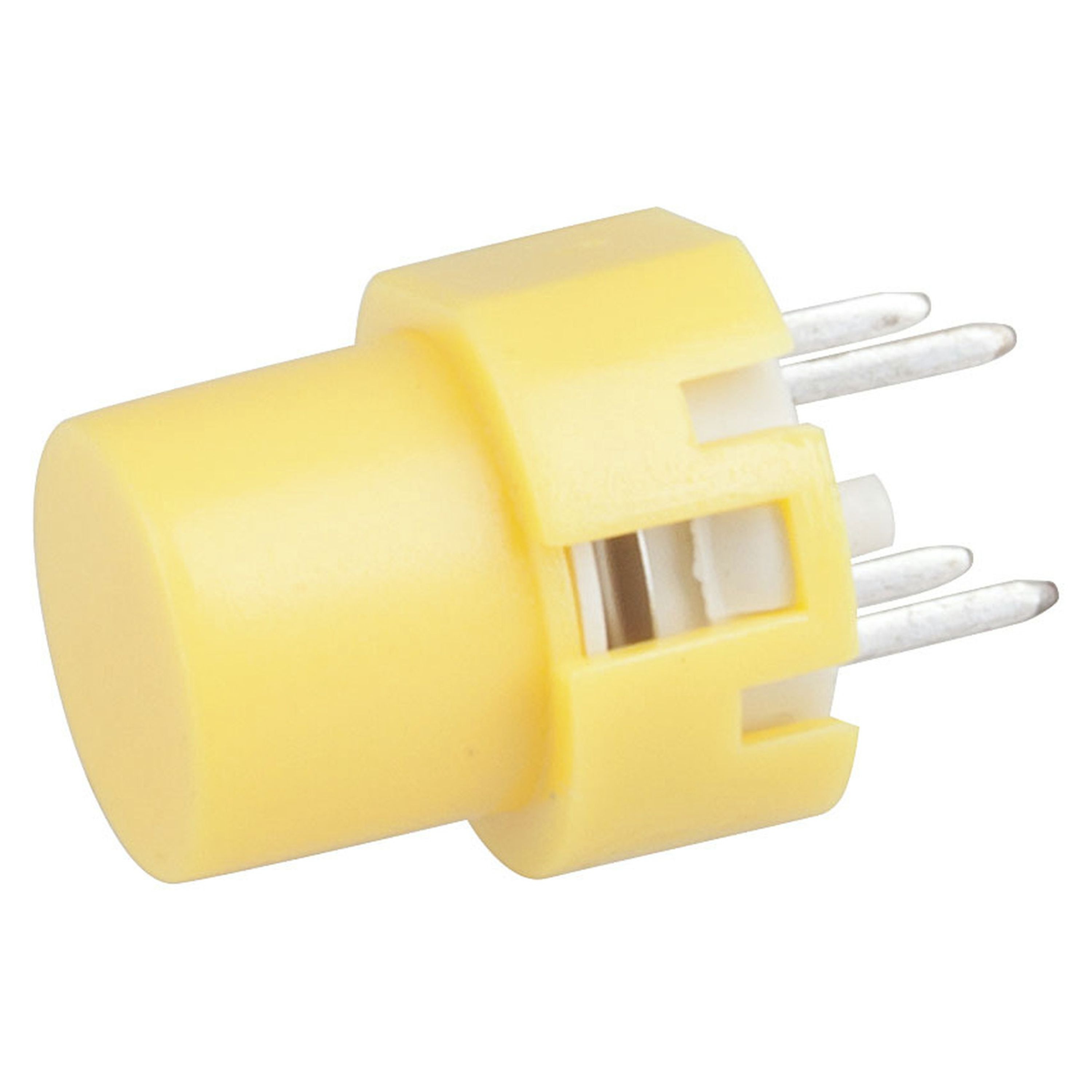

Yellow Snap Action Keyboard Switch - PCB Mount
- Cat No:
- SP0722
Sold as:1 Each
In Stock$1.65
Description
PCB Mount, single pole, momentary. Suitable for keyboards, security systems, etc. 5 colours.
- These switches are normally open SPST. When button is depressed the switch closes, but only whilethe button is down.
- Contact rating 10mA/35V DC. Pin spacing 5mm
Specifications
- Switch Type
- Keyboard Switch
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Contact Resistance
- 50.0 mΩ
- Insulation Resistance
- 100.0 MΩ
- Poles / Contacts
- 1.0 pole
- Dielectric Strength
- 250.0 V
- Switch Colour Coded
- Yellow
- Pole Throw Type
- SPST
- DC Voltage
- 35.0 V
- DC Current Rating
- 10.0 mA
- Mechanism Material
- Plastic
- Switch Connection
- PCB Pins
- Switch Type
- Tactile Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Momentary / Lock Dual Function
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Yellow
- Mechanism Material
- Plastic
- DC Voltage
- 35.0V
- DC current rating
- 10.0A
- Packaged Dimensions
- 1.2cm(Length) x 1.2cm(Width) x 2.0cm(Height)
